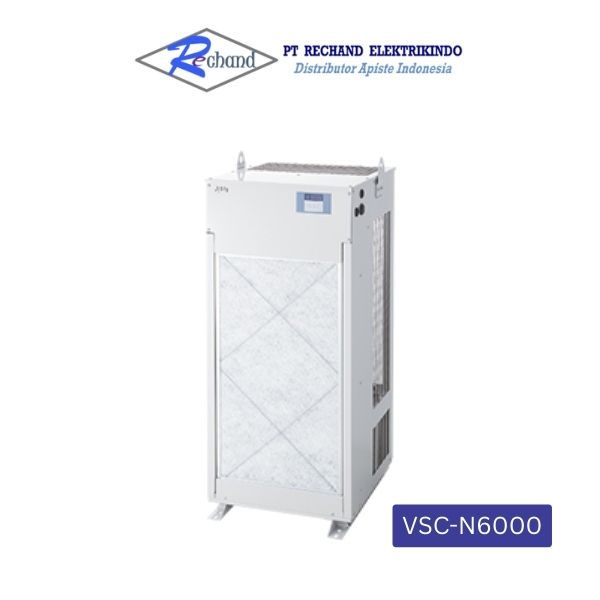

VSC-N6000 Air-Cooled Oil Chiller
VSC-N6000 adalah oil chiller udara presisi tinggi dari Apiste, dirancang untuk menjaga suhu oli stabil ±0,1°C. Ramah lingkungan dengan refrigeran HFO-1234yf, cocok untuk mesin presisi dan sistem hidrolik industri.
Spesifikasi VSC-N6000 Air-Cooled Oil Chiller
| Cooling method | Air-cooled type |
|---|---|
| Cooling capacity(W) | 5200／6000 |
| Setting criteria / tuned type | Room temperature, unit temperature |
| Control target / tuned type | Outlet opening oil temperature |
| Temperature control range / tuned type(℃) | Within -9.9 to +9.9 of the set standard temperature |
| Control target / fixed type | Outlet opening oil temperature |
| Temperature control range / fixed type(℃) | 5～45 |
| Usable Oil | Lubricating oil, petroleum hydraulic oil |
| Temperature control accuracy (°C) | ±0.1 |
| Oil viscosity (mm2/s) | 1.4～200（ISO VG2～68） |
| Use Area Temperature(℃) | 5～45 |
| External dimensions(mm) | H1100×W475×D495 |
| Weight(kg) | 95 |
| Coating Color | Munsell N7 |
| Power-supply voltage(V) | Three-phase AC200 |
| Power-supply voltage(V) | 8.6/8.6 |
| Consumption current(W) | 1920/2340 |
| Certification | CE |
| Refrigerant / Type | R1234yf 540g |
| Noise(dB (A)) | 70 |
| Pump / rated output(W) | 700 |
| Pump / Discharge rate(ℓ/min) | 30/36.0 |
| Relief valve pressure setting(MPa) | 0.6 |
| Pipe connection / Oil outlet | Rc11/4 |
| Pipe connection / Oil intlet | Rc11/4 |
| Safety circuit / Compressor | Thermal protector, electromagnetic switch |
| Safety circuit / Cooling cycle | Pressure switch |
| Safety circuit / Pump | Electromagnetic switch, relief valve |
| Input/output / Alarm output | Non-voltage, normally open or normal close can be selected |
| Input/output / Run/stop input | Non-voltage normally open |
