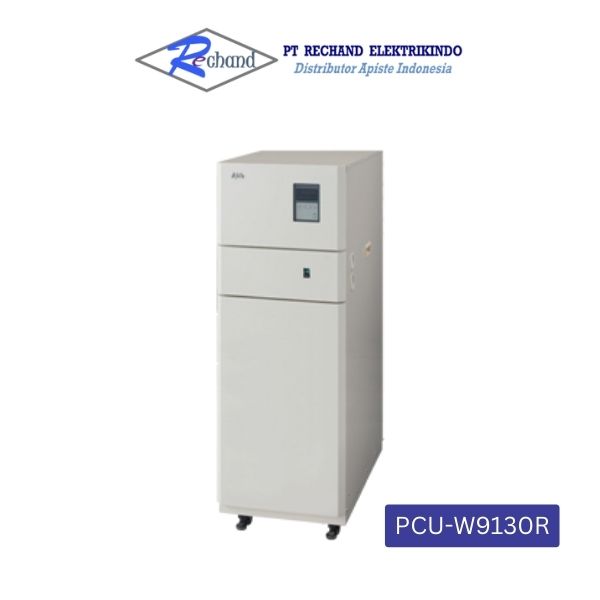

PCU-W9130R Precision Water-Cooling Chiller

PCU-W9130R adalah chiller presisi dari seri PCU-R Apiste dengan sistem water-cooling, dirancang untuk kinerja tinggi pada beban berat. Dengan kapasitas pendinginan 7.900 / 8.900 W dan pemanasan terkontrol 6.000 W, unit ini mampu menjaga suhu air sirkulasi stabil dalam rentang −10 hingga 80 °C, dengan presisi ±0,10 °C. Aliran air tetap sekitar 35/40 ℓ/min, dilengkapi dengan tangki 38 liter, proteksi komprehensif terhadap kondisi kritikal, serta dimensi unit yang relativ kompak untuk kelas 9 kW (H1250×W440×D800 mm, berat ~150 kg).

Cocok untuk aplikasi industri berat, proses produksi yang menuntut kestabilan suhu tinggi, dan sistem pendingin cairan skala besar.

Deskripsi

Spesifikasi PCU-W9130R Precision Water-Cooling Chiller

Cooling scheme	Water-cooling type
Cooling capacity (W)	7900 / 8900
Heating capacity / rapid heating(W)	0.0
Heating capacity / controlled heating(W)	6000
Circulated water	Pure water, ethylene glycol solution (concentration: 30% max.)
Temperature stability (℃)	±0.10 (High precision mode)
Use Area Temperature (℃)	5～40
Circulated water temperature range (Clear water) (℃)	-10 to 80
Circulating water fixed flow rate (ℓ/min) _{5 6}	35/40
Head (m)	24/35
Maximum tank capacity (ℓ)	38
Cooling water temperature range (℃)	5～40
Cooling water pressure range (Mpa)	0.1～0.5
Required cooling water flow rate (ℓ/min)	33
Dimensions (mm)	H1250×W440×D800
Weight (kg)	150
Rated Voltage (V)	3-phase AC200
Power Consumption/MIN (W)	3980/4600
Power Consumption/MAX (W)	9980/10600
Current Consumption/MIN (A)	13.9/15.0
Current Consumption /MAX (A)	33.9/35.0
Voltage source capacity (kVA)	15
Certification	CE
Refrigerator	R407C 1400g
Noise (dB)	57/57
Safety circuit / Compressor	Temperature protector (135℃ OFF), overcurrent relay
Safety circuit / Fan motor	Overcurrent relay
Input/Output / Water temperature upper / lower limit output	a-contact, no voltage (250 VAC/2 A/resistive load)
Input/Output / Emergency stop input	No-voltage input
Input/Output / RS-232C	Half-duplex, 3-wire, 1-to-1
Input/Output / External temperature sensor input	Pt100
Safety measures	Compressor conditioning timer, closing assist pump, fixing adjuster, double safety pan structure
Functions	Circulating water pressure display, heater power display, pump operating time display, freeze-proof operation, digital filter, password setting, automatic tuning, ON/OFF timer, key-lock, error history memory
