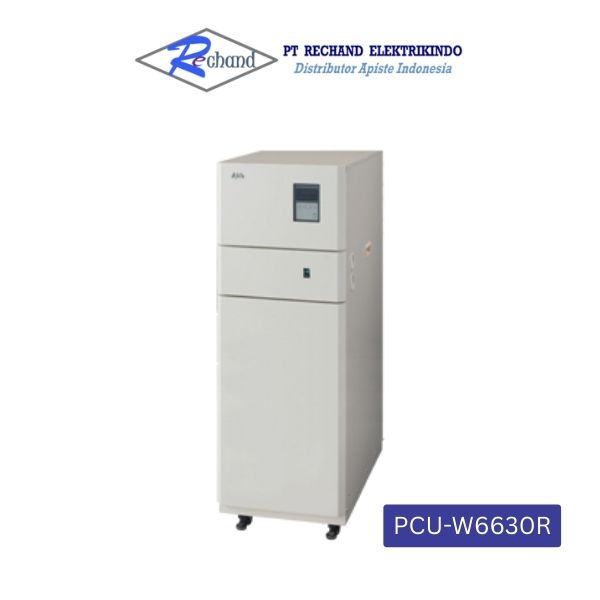

PCU-W6630R Precision Water-Cooling Chiller

PCU-W6630R adalah chiller water-cooling presisi tinggi dari seri PCU-R Apiste, menawarkan kapasitas pendinginan 5.900 / 6.400 W dan pemanasan terkontrol hingga 6.000 W. Rentang suhu pengaturan antara −10 hingga 80 °C dengan kestabilan suhu ±0,10 °C. Aliran sirkulasi air 35 / 40 ℓ/min, dimensi unit sekitar H1250×W440×D800 mm, dan berat ±137 kg.

Cocok untuk aplikasi seperti pemrosesan cairan industri, riset, dan produksi yang membutuhkan kontrol suhu tinggi & stabilitas.

Deskripsi

Spesifikasi PCU-W6630R Precision Water-Cooling Chiller

Cooling scheme	Water-cooling type
Cooling capacity (W)	5900 / 6400
Heating capacity / rapid heating(W)	0.0
Heating capacity / controlled heating(W)	6000
Circulated water	Pure water, ethylene glycol solution (concentration: 30% max.)
Temperature stability (℃)	±0.10 (High precision mode)
Use Area Temperature (℃)	5～40
Circulated water temperature range (Clear water) (℃)	-10 to 80
Circulating water fixed flow rate (ℓ/min) _{5 6}	35/40
Head (m)	24/35
Maximum tank capacity (ℓ)	38
Cooling water temperature range (℃)	5～40
Cooling water pressure range (Mpa)	0.1～0.5
Required cooling water flow rate (ℓ/min)	25
Dimensions (mm)	H1250×W440×D800
Weight (kg)	137
Rated Voltage (V)	3-phase AC200
Power Consumption/MIN (W)	2900/3350
Power Consumption/MAX (W)	8900/9350
Current Consumption/MIN (A)	10.5/11.2
Current Consumption /MAX (A)	30.5/31.2
Voltage source capacity (kVA)	15
Certification	CE
Refrigerator	R407C 910g
Noise (dB)	55／55
Safety circuit / Compressor	Temperature protector (135℃ OFF), overcurrent relay
Safety circuit / Fan motor	Overcurrent relay
Input/Output / Water temperature upper / lower limit output	a-contact, no voltage (250 VAC/2 A/resistive load)
Input/Output / Emergency stop input	No-voltage input
Input/Output / RS-232C	a-contact, no voltage (250 VAC/2 A/resistive load)
Input/Output / External temperature sensor input	Pt100
Safety measures	Compressor conditioning timer, closing assist pump, fixing adjuster, double safety pan structure
Functions	Circulating water pressure display, heater power display, pump operating time display, freeze-proof operation, digital filter, password setting, automatic tuning, ON/OFF timer, key-lock, error history memory
