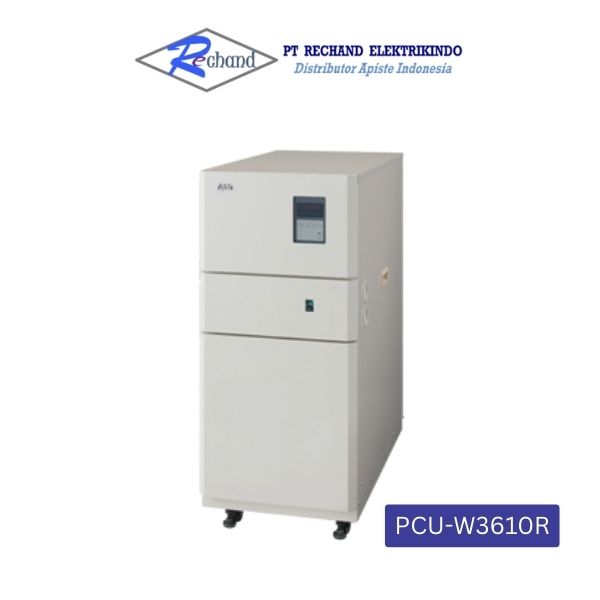

PCU-W3610R Precision Water-Cooling Chiller

PCU-W3610R adalah chiller dari seri Precision PCU-R Apiste, dengan mode presisi tinggi ±0,05 °C dan kapasitas pendinginan 3.100 / 3.400 W (air-cooling / water-cooling), pemanasan cepat 2.000 W dan pemanasan terkontrol 1.000 W. Mendukung rentang suhu cairan dari −10 sampai 80 °C, dengan aliran air sirkulasi tetap 18 / 20 ℓ/min, tangki 30 liter, dan berbagai proteksi seperti protektor suhu kompresor, protektor arus lebih, alarm temperatur & tekanan, serta input/output eksternal dan monitoring.

Fisik kompak (H1000×W440×D800 mm), berat sekitar 105 kg.

Deskripsi

Spesifikasi PCU-W3610R Precision Water-Cooling Chiller

Cooling scheme	Water-cooling type
Cooling capacity (W)	3100 / 3400
Heating capacity / rapid heating(W)	2000
Heating capacity / controlled heating(W)	1000
Circulated water	Pure water, ethylene glycol solution (concentration: 30% max.)
Temperature stability (℃)	±0.05 (High precision mode)
Use Area Temperature (℃)	5～40
Circulated water temperature range (Clear water) (℃)	-10 to 80
Circulating water fixed flow rate (ℓ/min) _{5 6}	18/20
Head (m)	30/43
Maximum tank capacity (ℓ)	30
Cooling water temperature range (℃)	5～40
Cooling water pressure range (Mpa)	0.1～0.5
Required cooling water flow rate (ℓ/min)	17
Dimensions (mm)	H1000×W440×D800
Weight (kg)	105
Rated Voltage (V)	3-phase AC200
Power Consumption/MIN (W)	1460/1810
Power Consumption/MAX (W)	4460/4810
Current Consumption/MIN (A)	4.9/5.9
Current Consumption /MAX (A)	14.9/15.9
Voltage source capacity (kVA)	7
Certification	CE
Refrigerator	R407C 530g
Noise (dB)	53/53
Safety circuit / Compressor	Temperature protector (135℃ OFF), overcurrent relay
Safety circuit / Fan motor	Overcurrent relay
Input/Output / Water temperature upper / lower limit output	a-contact, no voltage (250 VAC/2 A/resistive load)
Input/Output / Emergency stop input	No-voltage input
Input/Output / RS-232C	Half-duplex, 3-wire, 1-to-1
Input/Output / External temperature sensor input	Pt100
Safety measures	Compressor conditioning timer, closing assist pump, fixing adjuster, double safety pan structure
Functions	Circulating water pressure display, heater power display, pump operating time display, freeze-proof operation, digital filter, password setting, automatic tuning, ON/OFF timer, key-lock, error history memory
