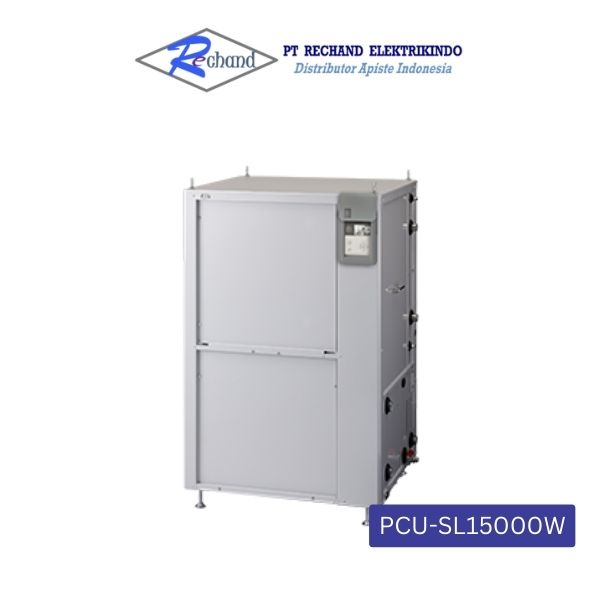

PCU-SL15000W High-Performance Water-Cooling Chiller

PCU-SL15000W adalah chiller high-performance tipe water-cooling dari seri PCU-SL Apiste. Menyediakan pendinginan sebesar 14.200 W dan pemanasan 2.500 W, dengan stabilitas suhu ±0,1 °C. Rentang suhu air bersirkulasi: 5-45 °C (air bersih) dan −5-45 °C (anti-freeze). Aliran air sirkulasi bisa diatur dari 20 sampai 70 ℓ/min. Dimensi unit sebesar H1349 × W850 × D750 mm, berat sekitar 139 kg.

Dirancang tahan outdoor, cocok bagi industri yang membutuhkan kontrol suhu cairan secara presisi dan tahan terhadap kondisi operasional berat.

Deskripsi

Spesifikasi PCU-SL15000W High-Performance Water-Cooling Chiller

Cooling scheme	Water-cooling type
Cooling capacity (W)	14200
Heating capacity (W)	2500
Circulated water	Pure water (over 1μs/cm), distilled water, ethylene glycol (less than 30% density), top water
Temperature stability (℃)	±0.1
Use Area Temperature (℃)	2～45
Circulated water temperature range (Clear water) (℃)	5～45
Circulated water temperature range (Anti-freeze water) (℃)	-5～45
Circulated water flow rate range (L/min)	20～70
Circulated water pressure range (Mpa)	0.7 or less
Circulating water maximum operating pressure (MPa)	Water pressure sensor, float switches for water shortage
Head (m)	51m (45L/min / 3600rpm) (max. lift 71m)
Maximum tank capacity (ℓ)	35
Cooling water temperature range (℃)	5～45
Dimensions (mm)	H1349×W850×D750
Coating Color	DIC G-260 (Munsell : N7.5 or suitable color)
Weight (kg)	139
Rated Voltage (V)	3-phase AC200～230V
Power Consumption (kW)	4.6
Current Consumption/MIN (A)	14.0
Current Consumption /MAX (A)	19.0
Voltage source capacity (kVA)	7.6
Recommended breaker capacity (A)	30
Components / Compressor	Shutting tightly Roundabout system
Components / Condenser	Plate-type heat exchanger
Components / Refrigerator	Plate-type heat exchanger
Components / Evaporator	70
Certification	CE
Refrigerator	R410A 1250g
Noise (dB)	58
Safety circuit / Compressor	Motor protector
Input/Output / Water temperature upper / lower limit output	No-voltage/normal open (250 VAC/2 A)
Input/Output / Operation stop output	No-voltage/normal open (250 VAC/2 A)
Input/Output / Emergency stop input	No-voltage input
Input/Output / Operation stop input	No-voltage input
Input/Output / Error reset input	No-voltage input
Input/Output / Ethernet	Communication standard: Ethernet 10BASE-T / 100BASE-TX Communication protocol: Socket (TCP / IP), MC protocol (UDP / IP) IP address: IPv4
Safety measures	CE (Low-voltage command, EMC command)
