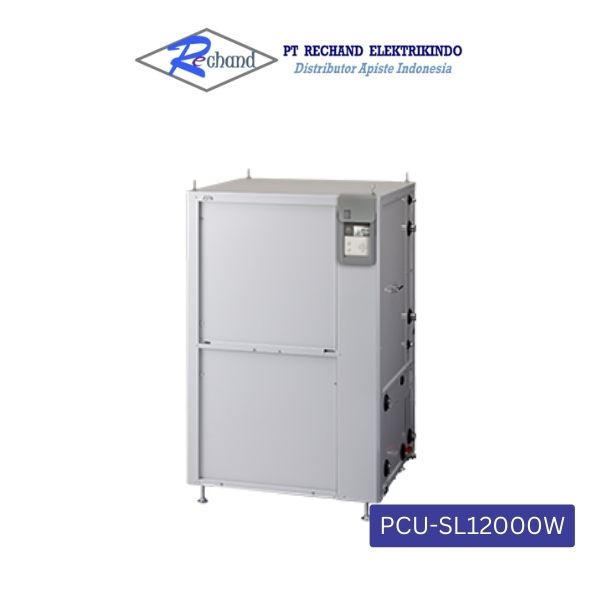

PCU-SL12000W High-Performance Water-Cooling Chiller

PCU-SL12000W adalah chiller seri High-Performance dari Apiste, tipe water-cooling dengan kapasitas pendinginan ~12.000 W dan pemanasan 2.500 W. Dirancang untuk penggunaan luar ruangan (outdoor), mampu menghasilkan stabilitas suhu ±0,1°C dan rentang suhu air bersirkulasi antara 5 sampai 45 °C (dengan antifreeze hingga −5 °C).

Sirkulasi air antara 20-70 L/min dan desain yang kokoh serta fitur proteksi lingkungan yang tinggi menjadikannya pilihan ideal untuk beban produksi tinggi dan aplikasi industri berat.

Deskripsi

Spesifikasi PCU-SL12000W High-Performance Water-Cooling Chiller

Cooling scheme	Water-cooling type
Cooling capacity (W)	12000
Heating capacity (W)	2500
Circulated water	Pure water (over 1μs/cm), distilled water, ethylene glycol (less than 30% density), top water
Temperature stability (℃)	±0.1
Use Area Temperature (℃)	2～45
Circulated water temperature range (Clear water) (℃)	5～45
Circulated water temperature range (Anti-freeze water) (℃)	-5～45
Circulated water flow rate range (L/min)	20～70
Circulated water pressure range (Mpa)	0.7 or less
Circulating water maximum operating pressure (MPa)	Water pressure sensor, float switches for water shortage
Head (m)	51m (45L/min / 3600rpm) (max. lift 71m)
Maximum tank capacity (ℓ)	35
Dimensions (mm)	H1349×W850×D750
Coating Color	DIC G-260 (Munsell : N7.5 or suitable color)
Weight (kg)	138
Rated Voltage (V)	3-phase AC200～230V
Power Consumption (kW)	3.8
Current Consumption/MIN (A)	12.0
Current Consumption /MAX (A)	17.0
Voltage source capacity (kVA)	7.6
Recommended breaker capacity (A)	30
Components / Compressor	Shutting tightly Roundabout system
Components / Condenser	Plate-type heat exchanger
Components / Refrigerator	Plate-type heat exchanger
Components / Evaporator	70
Certification	CE
Refrigerator	R410A 1150g
Noise (dB)	58
Safety circuit / Compressor	Motor protector
Input/Output / Water temperature upper / lower limit output	No-voltage/normal open (250 VAC/2 A)
Input/Output / Operation stop output	No-voltage/normal open (250 VAC/2 A)
Input/Output / Emergency stop input	No-voltage input
Input/Output / Operation stop input	No-voltage input
Input/Output / Error reset input	No-voltage input
Input/Output / Ethernet	Communication standard: Ethernet 10BASE-T / 100BASE-TX Communication protocol: Socket (TCP / IP), MC protocol (UDP / IP) IP address: IPv4
Safety measures	CE (Low-voltage command, EMC command)
