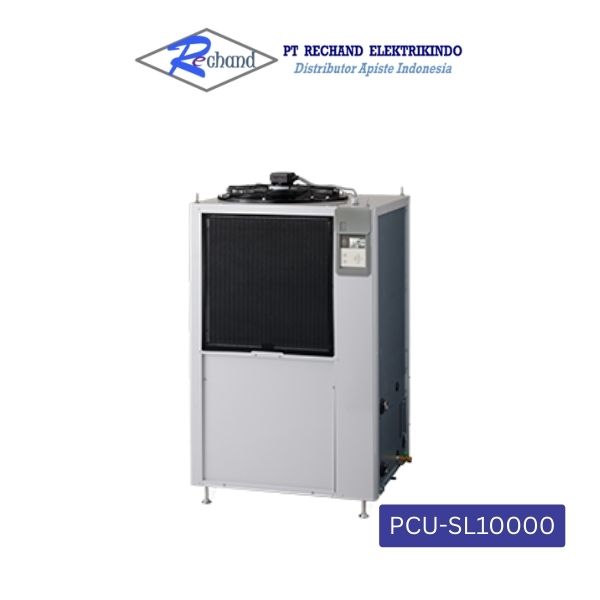

PCU-SL10000 High-Performance Chiller

PCU-SL10000 adalah high-performance air-cooling chiller dari seri PCU-SL Apiste. Dirancang untuk lingkungan industri berat dan penggunaan outdoor, memiliki kapasitas pendinginan sekitar 10.300 W, pemanasan 2.500 W, rentang suhu setting air −5 hingga 45 °C, dan stabilitas suhu ±0,1 °C. Aliran air sirkulasi berada di kisaran 20-70 ℓ/min. Fitur keselamatan dan kontrol lengkap termasuk proteksi kompresor dan sensor tekanan air.

Unit ini cocok untuk aplikasi yang membutuhkan kestabilan suhu tinggi bahkan di lingkungan eksternal yang ekstrem.

Deskripsi

Spesifikasi PCU-SL10000 High-Performance Chiller

Cooling scheme	Air-cooling type
Cooling capacity (W)	10300
Heating capacity (W)	2500
Circulated water	Pure water (over 1μs/cm), distilled water, ethylene glycol (less than 30% density), top water
Temperature stability (℃)	±0.1
Use Area Temperature (℃)	-5～45
Circulated water temperature range (Clear water) (℃)	5～45
Circulated water temperature range (Anti-freeze water) (℃)	-5～45
Circulated water flow rate range (L/min)	20～70
Circulated water pressure range (Mpa)	0.7 or less
Circulating water maximum operating pressure (MPa)	Water pressure sensor, float switches for water shortage
Head (m)	51m (45L/min / 3600rpm) (max. lift 71m)
Maximum tank capacity (ℓ)	35
Dimensions (mm)	H1468×W850×D750
Coating Color	DIC G-260 (Munsell : N7.5 or suitable color)
Weight (kg)	135
Rated Voltage (V)	3-phase AC200～230V
Power Consumption (kW)	4.6
Current Consumption/MIN (A)	14.5
Current Consumption /MAX (A)	19.0
Voltage source capacity (kVA)	7.6
Recommended breaker capacity (A)	30
Components / Compressor	Shutting tightly Roundabout system
Components / Condenser	Parallel flow condenser type, forced air cooling system
Components / Refrigerator	Plate-type heat exchanger
Components / Evaporator	70
Certification	CE
Refrigerator	R410A 1350g
Noise (dB)	69
Safety circuit / Compressor	Motor protector
Input/Output / Water temperature upper / lower limit output	No-voltage/normal open (250 VAC/2 A)
Input/Output / Operation stop output	No-voltage/normal open (250 VAC/2 A)
Input/Output / Emergency stop input	No-voltage input
Input/Output / Operation stop input	No-voltage input
Input/Output / Error reset input	No-voltage input
Input/Output / Ethernet	Communication standard: Ethernet 10BASE-T / 100BASE-TX Communication protocol: Socket (TCP / IP), MC protocol (UDP / IP) IP address: IPv4
