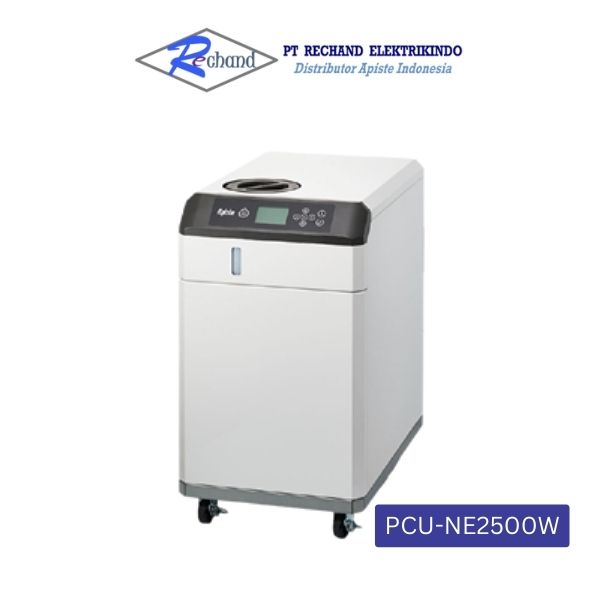

PCU-NE2500W Non-Freon Water-Cooling Chiller

PCU-NE2500W adalah chiller water-cooling non-freon dari seri PCU-NE Apiste. Mampu memberikan kapasitas pendinginan 2.600 / 3.100 W dan pemanasan 280 / 450 W, dengan suhu air bersirkulasi antara 5-40 °C, dan stabilitas suhu ±0,1 °C. Dilengkapi sirkulasi air rated flow rate 15 ℓ/min, kemampuan head pompa hingga ~14-20 m, serta fitur kontrol & proteksi keamanan seperti thermal protector dan alat monitoring suhu.

Dimensi kompak H697×W400×D600 mm, berat sekitar 56 kg.

Deskripsi

Spesifikasi PCU-NE2500W Non-Freon Water-Cooling Chiller

Cooling scheme	Water-cooling type
Cooling capacity (W) _*1	2600 / 3100
Heating capacity (W) _*1	280 / 450
Circulated water _*2	Clean water, Ethylene glycol solution (concentration 15 wt% or less), Propylene glycol solution (concentration 15 wt% or less)
Temperature stability (℃) _*3	±0.1
Use Area Temperature (℃)	5 to 45
Circulating water fixed flow rate (ℓ/min)	15/15
Head (m) _*4	14/20
Tank capacity (ℓ)	Approx. 12
Cooling water temperature range (℃)	5～45
Cooling water pressure range (Mpa)	0.1 to 0.7
Required cooling water flow rate (ℓ/min)	15 or more
Cooling water inlet outlet diameter	Rc1/2
Dimensions (mm) _*5	H697×W400×D600
Coating Color	Munsell N-87
Weight (kg)	Approx. 56
Casters (Φmm×unit)	50×4
Rated Voltage (V) _*6	3-phase 200 VAC
Power Consumption (kW) _*1	0.7 / 0.9
Current consumption (A) _*1	2.7 / 2.9
Recommended breaker capacity (A)	10
Circulating water inlet / outlet port size	Rc3/4
Drain discharge port size	G1/2x2
Components / Compressor	Fully sealed rotary type
Components / Condenser	Plate-type heat exchanger
Components / Evaporator	Structure : Plate-type heat exchanger Material : SUS316 (copper brazing)
Certification	CE / ETL
Refrigerator	R1234yf 290g
Noise (dB) _*7	58 / 59
Safety circuit / Compressor	Thermal protector
Input / Alarm output	No voltage open-contact (Max. AC250V/1A, DC30V/2A)
Input/Output / Water temperature upper / lower limit output	No voltage open-contact (Max. AC250V/1A, DC30V/2A)
Input/Output / Operation stop output	No voltage open-contact (Max. AC250V/1A, DC30V/2A)
Input/Output / Emergency stop input	No-voltage input
Input/Output / Operation stop input	No-voltage input
Input/Output / Error reset input	No-voltage input
Input/Output / External temperature sensor _*8	Pt100
Input/Output / Ethernet	10BASE-T/100BASE-TX Socket(TCP/IP)、MC protocol(UDP/IP)、Modbus TCP
