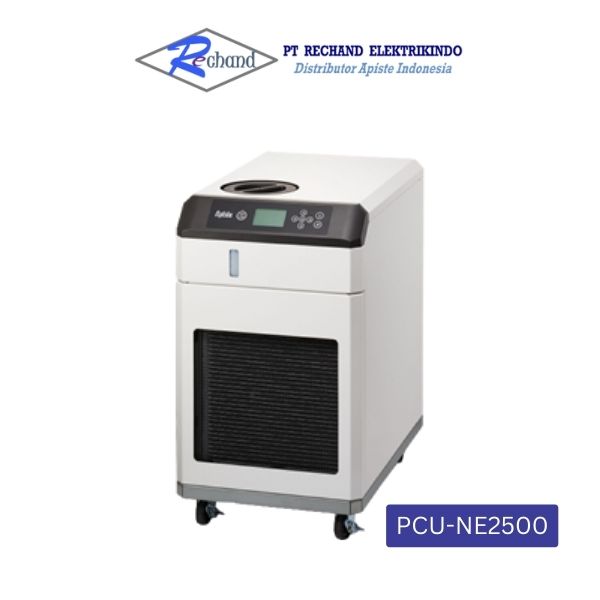

PCU-NE2500 Non-Freon Chiller

PCU-NE2500 adalah chiller non-freon dari seri PCU-NE Apiste, dengan pendinginan udara (air-cooling) dan refrigeran bebas freon R1234yf. Memiliki kapasitas pendinginan 2.300-2.600 W dan kemampuan pemanasan 400-600 W, stabilitas suhu ±0,1 °C, debit air sirkulasi tetap 15 ℓ/menit, serta konstruksi kompak (dimensi H697×W400×D600 mm, berat sekitar 58 kg).

Cocok digunakan di industri yang memerlukan kontrol suhu cairan yang presisi untuk mencegah overheating dan menjaga kinerja mesin tetap optimal.

Deskripsi

Spesifikasi PCU-NE2500 Non-Freon Chiller

Cooling scheme	Air-cooling type
Cooling capacity (W) _*1	2300 / 2600
Heating capacity (W) _*1	400 / 600
Circulated water _*2	Clean water, Ethylene glycol solution (concentration 15 wt% or less), Propylene glycol solution (concentration 15 wt% or less)
Temperature stability (℃) _*3	±0.1
Use Area Temperature (℃)	5～45
Circulating water fixed flow rate (ℓ/min)	15/15
Head (m) _*4	14/20
Tank capacity (ℓ)	Approx. 12
Dimensions (mm) _*5	H697×W400×D600
Coating Color	Munsell N-87
Weight (kg)	Approx. 58
Casters (Φmm×unit)	50×4
Rated Voltage (V) _*6	3-phase 200 VAC
Power Consumption (kW) _*1	0.9 / 1.2
Current consumption (A) _*1	3.2 / 3.7
Recommended breaker capacity (A)	10
Circulating water inlet / outlet port size	Rc3/4
Drain discharge port size	G1/2
Components / Compressor	Fully sealed rotary type
Components / Condenser	Parallel flow condenser type
Components / Evaporator	Structure : Plate-type heat exchanger Material : SUS316 (copper brazing)
Certification	CE / ETL
Refrigerator	R1234yf 340g
Noise (dB) _*7	58 / 59
Safety circuit / Compressor	Thermal protector
Safety circuit / Fan motor	Thermal protector, Current fuse
Input / Alarm output	No voltage open-contact (Max. AC250V/1A, DC30V/2A)
Input/Output / Water temperature upper / lower limit output	No voltage open-contact (Max. AC250V/1A, DC30V/2A)
Input/Output / Operation stop output	No voltage open-contact (Max. AC250V/1A, DC30V/2A)
Input/Output / Emergency stop input	No-voltage input
Input/Output / Operation stop input	No-voltage input
Input/Output / Error reset input	No-voltage input
Input/Output / External temperature sensor _*8	Pt100
Input/Output / Ethernet	10BASE-T/100BASE-TX Socket(TCP/IP)、MC protocol(UDP/IP)、Modbus TCP
