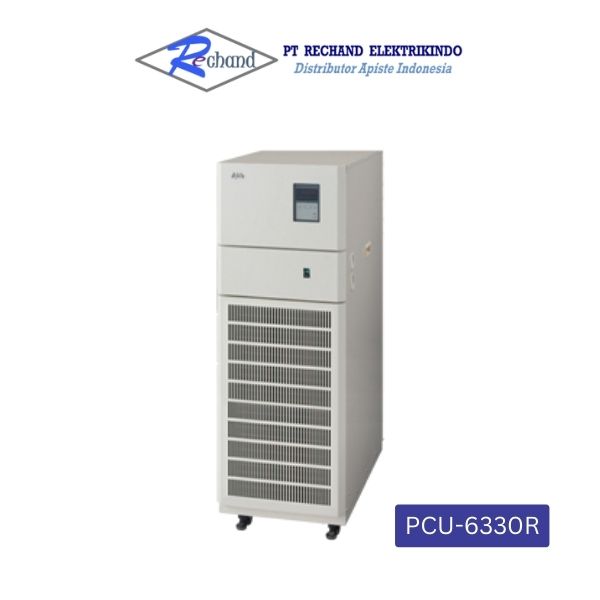

PCU-6330R Precision Air-Cooling Chiller

PCU-6330R adalah precision air-cooling chiller dari seri PCU-R Apiste yang dirancang untuk kebutuhan industri dengan kontrol suhu tinggi. Dengan kapasitas pendinginan 5.700-6.100 W, kontrol pemanasan terkontrol ≈6.000 W, dan stabilitas suhu ±0,10 °C, unit ini mampu bekerja dalam rentang suhu cairan dari −10 hingga 80 °C. Memiliki aliran air tetap 35 / 40 ℓ/min, dimensi H1250×W440×D800 mm, dan berat sekitar 137 kg.

Fitur proteksi komprehensif serta display kesiapan operasional membuatnya cocok untuk aplikasi industri, laboratorium, dan proses produksi yang menuntut presisi tinggi.

Deskripsi

Spesifikasi PCU-6330R Precision Air-Cooling Chiller

Cooling scheme	Air-cooling type
Cooling capacity (W)	5700 / 6100
Heating capacity / rapid heating(W)	0.0
Heating capacity / controlled heating(W)	6000
Circulated water	Pure water, ethylene glycol solution (concentration: 30% max.)
Temperature stability (℃)	±0.10 (High precision mode)
Use Area Temperature (℃)	5～40
Circulated water temperature range (Clear water) (℃)	-10 to 80
Circulating water fixed flow rate (ℓ/min) _{5 6}	35/40
Head (m)	24/35
Maximum tank capacity (ℓ)	38
Dimensions (mm)	H1250×W440×D800
Weight (kg)	137
Rated Voltage (V)	3-phase AC200
Power Consumption/MIN (W)	3150/3700
Power Consumption/MAX (W)	9150/9650
Current Consumption/MIN (A)	11.5/12.2
Current Consumption /MAX (A)	31.5/32.2
Voltage source capacity (kVA)	15
Certification	CE
Refrigerator	R407C 1200g
Noise (dB)	65/68
Safety circuit / Compressor	Temperature protector (135℃ OFF), overcurrent relay
Safety circuit / Fan motor	Overcurrent relay
Input/Output / Water temperature upper / lower limit output	a-contact, no voltage (250 VAC/2 A/resistive load)
Input/Output / Emergency stop input	No-voltage input
Input/Output / RS-232C	Half-duplex, 3-wire, 1-to-1
Input/Output / External temperature sensor input	Pt100
Safety measures	Compressor conditioning timer, closing assist pump, fixing adjuster, double safety pan structure
