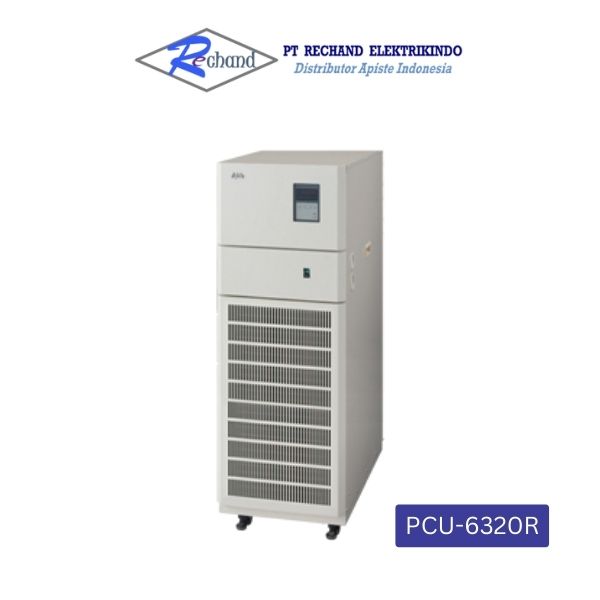

PCU-6320R Precision Chiller

PCU-6320R adalah precision chiller seri PCU-R Apiste yang dirancang untuk aplikasi industri dengan kebutuhan kontrol suhu tinggi. Kapasitas pendinginan sekitar 5.800 / 6.200 W, dan pemanasan rapid mode hingga 6.000 W. Rentang suhu air bersirkulasi dari −10 hingga 80 °C, stabilitas suhu ±0,10 °C, dengan debit air tetap 35 / 40 ℓ/min.

Cocok untuk proses produksi, pengujian, mesin presisi, atau aplikasi lain yang memerlukan kestabilan suhu ekstrem.

Deskripsi

Spesifikasi PCU-6320R Precision Chiller

Cooling scheme	Air-cooling type
Cooling capacity (W)	5800 / 6200
Heating capacity / rapid heating(W)	0.0
Heating capacity / controlled heating(W)	6000
Circulated water	Pure water, ethylene glycol solution (concentration: 30% max.)
Temperature stability (℃)	±0.10 (High precision mode)
Use Area Temperature (℃)	5～40
Circulated water temperature range (Clear water) (℃)	-10 to 80
Circulating water fixed flow rate (ℓ/min) _{5 6}	35/40
Head (m)	18/28
Maximum tank capacity (ℓ)	38
Dimensions (mm)	H1250×W440×D800
Weight (kg)	135
Rated Voltage (V)	3-phase AC200
Power Consumption/MIN (W)	2950/3450
Power Consumption/MAX (W)	8950/9450
Current Consumption/MIN (A)	10.5/11.2
Current Consumption /MAX (A)	30.5/31.2
Voltage source capacity (kVA)	15
Certification	CE
Refrigerator	R407C 1200g
Noise (dB)	65/68
Safety circuit / Compressor	Temperature protector (135℃ OFF), overcurrent relay
Safety circuit / Fan motor	Overcurrent relay
Input/Output / Water temperature upper / lower limit output	a-contact, no voltage (250 VAC/2 A/resistive load)
Input/Output / Emergency stop input	No-voltage input
Input/Output / RS-232C	Half-duplex, 3-wire, 1-to-1
Input/Output / External temperature sensor input	Pt100
Safety measures	Compressor conditioning timer, closing assist pump, fixing adjuster, double safety pan structure
