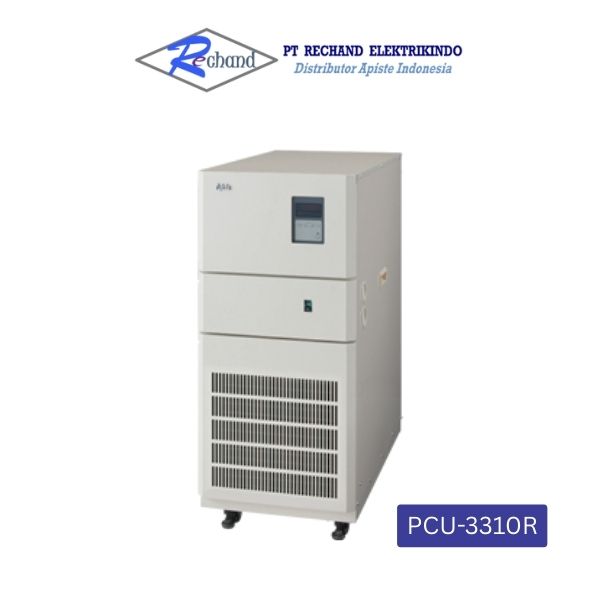

PCU-3310R Precision Chiller

PCU-3310R adalah precision chiller seri PCU-R dari Apiste, dengan kapasitas pendinginan 2.800/3.100 W dan pemanasan cepat 2.000 W (pemanasan terkontrol 1.000 W), rentang suhu air sirkulasi dari −10 °C hingga 80 °C, dan stabilitas suhu tinggi ±0,05 °C dalam modus presisi tinggi. Menggunakan tipe air-cooling, dengan aliran air tetap ~18-20 ℓ/min, dan konstruksi yang tangguh dengan fitur proteksi komprehensif seperti proteksi temperatur kompresor, proteksi fan, water purity monitoring, kontrol digital, dan log error history.

Cocok dipakai di industri semikonduktor, laboratorium riset, presisi optik, atau aplikasi manufaktur yang menuntut kontrol suhu sangat ketat.

Deskripsi

Spesifikasi PCU-3310R Precision Chiller

Cooling scheme	Air-cooling type
Cooling capacity (W)	2800 / 3100
Heating capacity / rapid heating(W)	2000
Heating capacity / controlled heating(W)	1000
Circulated water	Pure water, ethylene glycol solution (concentration: 30% max.)
Temperature stability (℃)	±0.05 (High precision mode)
Use Area Temperature (℃)	5～40
Circulated water temperature range (Clear water) (℃)	-10 to 80
Circulating water fixed flow rate (ℓ/min) _{5 6}	18/20
Head (m)	30/43
Maximum tank capacity (ℓ)	30
Dimensions (mm)	H1000×W440×D800
Weight (kg)	104
Rated Voltage (V)	3-phase AC200
Power Consumption/MIN (W)	1530/1890
Power Consumption/MAX (W)	4530/4890
Current Consumption/MIN (A)	5.3/6.3
Current Consumption /MAX (A)	15.3/16.3
Voltage source capacity (kVA)	7
Certification	CE
Refrigerator	R407C 800g
Noise (dB)	62/65
Safety circuit / Compressor	Temperature protector (135℃ OFF), overcurrent relay
Safety circuit / Fan motor	Overcurrent relay
Input/Output / Water temperature upper / lower limit output	a-contact, no voltage (250 VAC/2 A/resistive load)
Input/Output / Emergency stop input	No-voltage input
Input/Output / RS-232C	Half-duplex, 3-wire, 1-to-1
Input/Output / External temperature sensor input	Pt100
Safety measures	Compressor conditioning timer, closing assist pump, fixing adjuster, double safety pan structure
