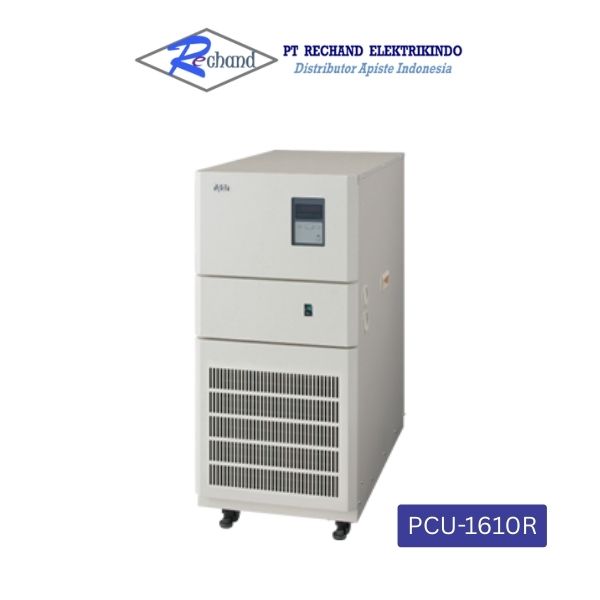

PCU-1610R Precision Chiller

PCU-1610R adalah chiller presisi tinggi dari seri PCU-R Apiste. Mampu mendinginkan hingga 1200/1300 W, dengan rentang suhu air sirkulasi dari −10 hingga 80 °C, dan stabilitas suhu sangat tinggi ±0,05 °C dalam High Precision Mode. Dilengkapi pompa dengan laju aliran 10-12 ℓ/min, kapasitas tangki 21 liter, dan spesifikasi keamanan & proteksi lengkap (sensor suhu, proteksi kompresor/fan, alarm, proteksi air, dll).

Ukuran kompak (H950 × W400 × D770 mm; berat ~94 kg) menjadikan PCU-1610R cocok untuk produksi, laboratorium, atau proses industri yang menuntut kontrol suhu sangat ketat.

Deskripsi

Spesifikasi PCU-1610R Precision Chiller

Cooling scheme	Air-cooling type
Cooling capacity (W)	1200 / 1300
Heating capacity / rapid heating(W)	1300
Heating capacity / controlled heating(W)	700
Circulated water	Pure water, ethylene glycol solution (concentration: 30% max.)
Temperature stability (℃)	±0.05 (High precision mode)
Use Area Temperature (℃)	5～40
Circulated water temperature range (Clear water) (℃)	-10 to 80
Circulating water fixed flow rate (ℓ/min) _{5 6}	10/12
Head (m)	32/47
Maximum tank capacity (ℓ)	21
Dimensions (mm)	H950×W400×D770
Weight (kg)	94
Rated Voltage (V)	3-phase AC200
Power Consumption/MIN (W)	840/1030
Power Consumption/MAX (W)	2840/3030
Current Consumption/MIN (A)	3.7/3.8
Current Consumption /MAX (A)	10.4/10.5
Voltage source capacity (kVA)	4
Certification	CE
Refrigerator	R407C 490g
Noise (dB)	61/64
Safety circuit / Compressor	Temperature protector (135℃ OFF), overcurrent relay
Safety circuit / Fan motor	Overcurrent relay
Input/Output / Water temperature upper / lower limit output	a-contact, no voltage (250 VAC/2 A/resistive load)
Input/Output / Emergency stop input	No-voltage input
Input/Output / RS-232C	Half-duplex, 3-wire, 1-to-1
Input/Output / External temperature sensor input	Pt100
Safety measures	Compressor conditioning timer, closing assist pump, fixing adjuster, double safety pan structure
