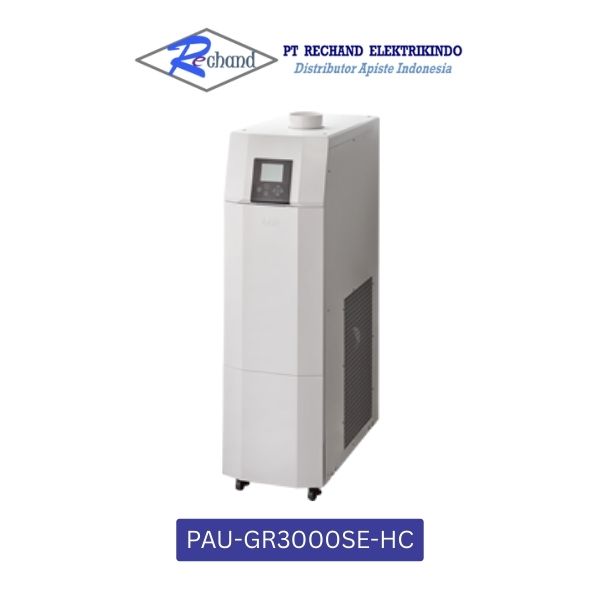

PAU-GR3000SE-HC – Precision Air Conditioner (TCU/ECU)

PAU-GR3000SE-HC adalah unit pendingin presisi dari seri PAU Apiste, dirancang untuk kontrol suhu dan kelembapan yang akurat dalam lingkungan dengan suhu ambient 15–35 °C dan kelembapan 15–85% RH (tanpa kondensasi). Unit ini menggunakan refrigeran R1234yf dan memiliki kapasitas pendinginan hingga 3500 W serta kapasitas termal 3400 W.

Dilengkapi dengan kontrol suhu presisi ±0,1 °C dan rentang kontrol suhu 20–30 °C, unit ini cocok untuk aplikasi yang memerlukan stabilitas suhu tinggi.

Deskripsi

Spesifikasi PAU-GR3000SE-HC

Cooling scheme	Air-cooling type
Control models	Temperature and humidity control
Cooling capacity(W) _*1	3000 (3500)
Thermal capacity(W) _*2	3400 (1150)
Humidity capacity(g/㎏(DA)) _*3	5.1
Dehumidifying capacity(g/㎏(DA)) _*4	12.9 (Attained dew point temperature: 3.5℃ DP or less)
Temperature control precision(℃) _*5	±0.1
Temperature control range(℃) _*6	20 to 30
Humidity control precision(%RH) _*5	±0.5
Humidity control range(%RH) _*6	35 to 75
Temperature setting range (℃) _*7	0 to 50
Humidity control setting range(%) _*7	0 to 99.99
Ambient temperature(℃)	15 to 35 (Temperature change gradient: 1℃ or less/h)
Ambient humidity(%RH)	15 to 85 (Humidity change gradient: within 5%RH/1h) (No condensation)
Air outlet volume(m³/min) _*8	10.0 (Normal mode / Energy saving mode) 3.0 (Dry mode)
External Dimensions(mm) _*9	H1470×W450×D900
Weight(kg)	130
Coating Color	Munsell N-87 gray equivalent
Blower duct connection diameter(mm)	φ150
Rated voltage(V) _*10	Three-phase, 200 to 240 VAC
Current consumption(A) _※11	4.7(Rated) / 6.1(MAX)
Power consumption(W) _*11	1180(Rated) / 1460(MAX)
Humidifier / Water supply pressure(MPa)	0.2 to 1.0
Humidifier / Water temperature(℃)	(OA - 10℃) to 50
Humidifier / Water supply connection port	8A socket
Drain connection diameter	20A (Rc3/4) ×2P
Frame drain connection port diameter	15A (Rc1/2)
Refrigerant(g)	R1234yf 890g
Exhaust air volume(m³/min) _*12	10.0
Noise (dB (A)) _*13	67
