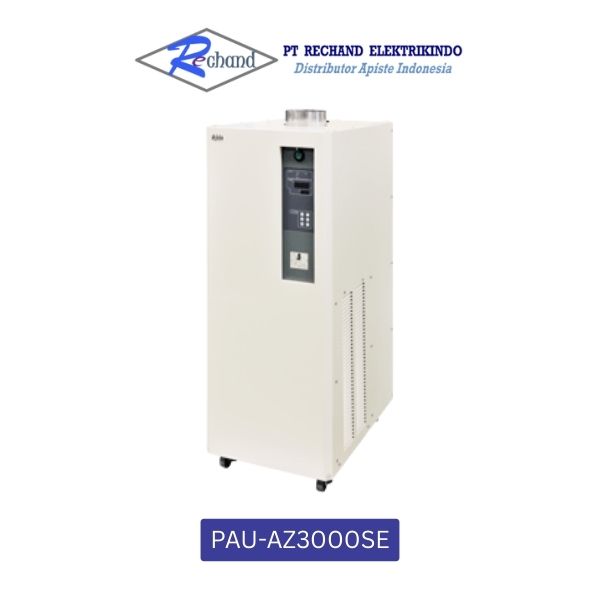

PAU-AZ3000SE – Precision Air Conditioner (TCU/ECU)

PAU-AZ3000SE adalah unit pendingin presisi dari seri PAU Apiste, dirancang untuk kontrol suhu yang akurat dalam lingkungan dengan suhu ambient 15–35 °C dan kelembapan 15–85% RH (tanpa kondensasi). Unit ini menggunakan refrigeran R134a dan memiliki kapasitas pendinginan hingga 2950 W serta kapasitas termal 3550 W.

Dilengkapi dengan kontrol suhu presisi ±0,1 °C dan rentang kontrol suhu 20–30 °C, unit ini cocok untuk aplikasi yang memerlukan stabilitas suhu tinggi.

Deskripsi

Spesifikasi PAU-AZ3000SE

Cooling scheme	Air-cooling type
Control models	Temperature control
Cooling capacity(W)	2600/2950
Thermal capacity(W)	3250/3550
Temperature control precision(℃)	±0.1
Temperature control range(℃)	20 to 30
Ambient temperature(℃)	15～35 (Temperature change gradient: Within 1℃/1h)
Ambient humidity(%RH)	15～85 (Humidity change gradient: within 5%RH/1h) (No condensation)
Processed air volume(m³/min)	9.5／10
External Dimensions(mm)	H1115×W450×D700
Weight(kg)	88
Coating Color	Ivory (Y22-85B semi-gloss)
Blower duct connection diameter(mm)	φ150 (with damper)
Rated voltage(V)	Three-phase, 200 VAC
Current consumption(A)	4.45/4.3（Rated）　5.6/5.6（MAX）
Power consumption(W)	965/1245（Rated）　1410/1750（MAX）
Drain connection diameter	20A female socket (Rp: 3/4 inch)
Refrigerant(g)	R134a 730g
Exhaust air volume(m³/min)	20/24
Noise (dB (A))	2
Safety circuit / Main circuit	Earth leakage breaker (10A 30mA), reverse rotation prevention relay
Safety circuit / Blower	Overcurrent relay, delay timer (3 minutes), surge absorber
Safety circuit / Compressor	Low temperature operation prevention thermostat, overcurrent relay, thermal protector (110 ℃ OFF 80 ℃ ON), surge absorber
Output/Main unit abnormal output	Normal close/no-voltage (250 VAC/2 A/resistive load)
Output / Temperature upper / Lower limit alarm	Normal close/no-voltage (250 VAC/2 A/resistive load)
