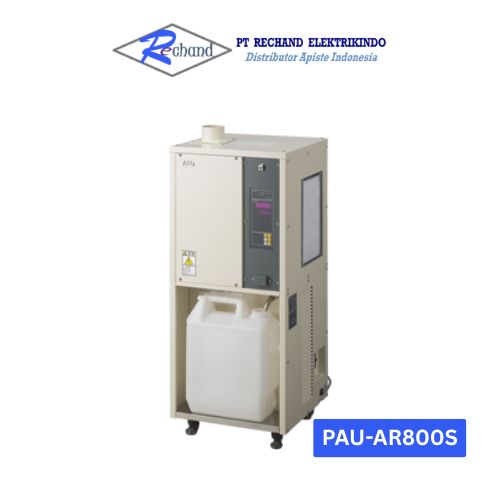

PAU-AR800S – Precision Air Conditioner Kompak Berdaya Tinggi & Tegangan 100 V

PAU-AR800S adalah precision air conditioner tipe air-cooling yang dirancang compact namun memiliki performa tinggi: kapasitas pendingin 430-510 W, thermal capacity 1.000 W, dengan akurasi kontrol suhu ±0,1 °C dalam rentang 20-30 °C.

Cocok untuk aplikasi yang butuh stabilitas suhu tinggi dalam ruang terbatas.

Deskripsi

Spesifikasi PAU-AR800S

Cooling scheme	Air-cooling type
Control models	Temperature control
Cooling capacity(W)	430/510
Thermal capacity(W)	1000
Temperature control precision(℃)	±0.1
Temperature control range(℃)	20 to 30
Ambient temperature(℃)	20～35 (Temperature change gradient: Within 1℃/1h)
Ambient humidity(%RH)	10～85 (Humidity change gradient: within 5%RH/1h) (No condensation)
Processed air volume(m³/min)	1.8／2.0
External Dimensions(mm)	H965×W400×D400
Weight(kg)	54
Coating Color	Ivory (Y22-85B semi-gloss)
Blower duct connection diameter(mm)	φ75
Rated voltage(V)	Single-phase, 100 VAC
Current consumption(A)	14.1/14.6（MAX）
Power consumption(W)	1370/1460（MAX）
Drain connection diameter	Outer diameter φ16
Certification	ETL
Refrigerant(g)	R134a　320g
Exhaust air volume(m³/min)	10.0／12.0
Safety circuit / Main circuit	Earth leakage breaker (15A 15mA)
Safety circuit / Blower	Delay timer (3 minutes)
Safety circuit / Compressor	Low temperature operation prevention thermostat (18°C OFF, 20°C ON), overcurrent relay, motor protector (100°C OFF 55°C ON), surge absorber
Safety circuit / Heater	Overheat prevention thermostat (65℃ OFF 55℃ ON), thermal fuse (99℃), surge absorber
