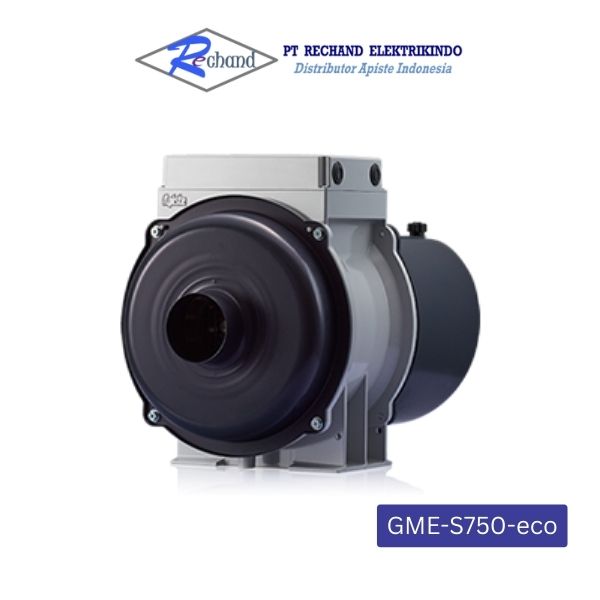

GME-S750-eco Mist Collector
GME-S750-eco adalah mist collector seri eco Apiste yang dirancang untuk performa tinggi dan konsumsi daya yang efisien. Memiliki aliran udara maksimum 15,8 m³/menit, efisiensi pengumpulan 99 %, dan motor berdaya 0,75 kW dengan motor permanent magnet synchronous.
Cocok untuk mengatasi kabut oli larut maupun tidak larut di workstation, area las, atau aplikasi industri sejenis. Desain kompak dan berat sekitar 24 kg memudahkan instalasi dan pemeliharaan.
Spesifikasi GME-S750-eco Mist Collector
| Maximum air volume(m³/min) | 15.8 |
|---|---|
| Maximum static pressure (kPa) | 1.4 |
| Collecting efficiency(%) *1 | 99.0 |
| Operating temperature and humidity | 0 to 50℃, 90% RH or less (indoor specification, no condensation) |
| Absorption gas temperature(℃) | 0 to 50 |
| Collection target *2 | Water-insoluble oil mist (ignition point: 150℃ or higher), water-soluble oil mist |
| Max. inlet density(mg/m3) | 50 |
| External dimensions(mm) *3 | H484×W408×D539 |
| Suction port(mm) | Side suction ø123 |
| Weight(kg) | Approx. 24 |
| Coating color | Munsell N7, Munsell 5PB2/2 |
| Rated voltage(V) *4 | Three-phase 200 to 230 V AC (50/60 Hz) |
| Current consumption(A) *5 | 4.2 |
| Power consumption(W) *5 | 900 |
| Recommended breaker capacity(A) | 10 |
| Installed motor | Permanent magnet synchronous motor (for inverter drive only) |
| Installed motor output | 0.75 kW 4P (fully enclosed fan-less type) |
| Fan material | A5052 (aluminum), SPCC (iron) |
| Drain pipe(mm) | Outside diameter ø25.4 pipe (2 places) |
| Noise(dB[A]) | 75 |
