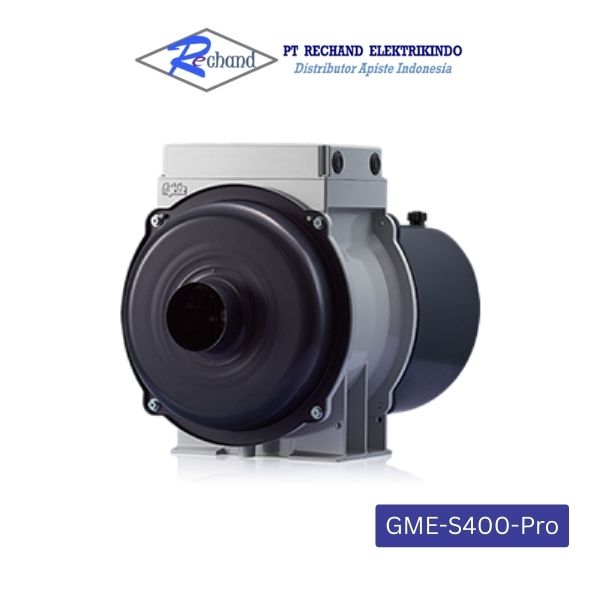

GME-S400-Pro Mist Collector
GME-S400-Pro adalah mist collector high-performance dari seri GME-S-Pro Apiste yang dirancang untuk menangani kabut oli dan asap kecil di lingkungan industri. Dengan aliran udara maksimum 7,7 m³/menit, efisiensi koleksi 99,7%, dan daya hanya 0,4 kW.
Unit ini cocok untuk workstation las, mesin presisi, atau area produksi dengan kebutuhan kebersihan udara tinggi. Material tahan lama dan desain port-side suction memudahkan pemasangan dan perawatan rutin.
Spesifikasi GME-S400-Pro Mist Collector
| Maximum air volume(m³/min) | 7.7 |
|---|---|
| Maximum static pressure (kPa) | 0.9 |
| Collecting efficiency(%) *1 | 99.7 |
| Operating temperature and humidity | 0 to 50℃, 90% RH or less (indoor specification, no condensation) |
| Absorption gas temperature(℃) | 0 to 50 |
| Collection target *2 | Water-insoluble oil mist (ignition point: 150℃ or higher), water-soluble oil mist |
| Max. inlet density(mg/m3) | 50 |
| External dimensions(mm) *3 | H444×W368×D530 |
| Suction port(mm) | Side suction ø98 |
| Weight(kg) | Approx. 25 |
| Coating color | Munsell N7, Munsell 5PB2/2 |
| Rated voltage(V) *4 | Three-phase 200 to 230 V AC (50/60 Hz) |
| Current consumption(A) *5 | 2.8 |
| Power consumption(W) *5 | 560 |
| Recommended breaker capacity(A) | 10 |
| Installed motor | Three-phase induction motor |
| Installed motor output | 0.4 kW 2P (fully enclosed fan-less type) |
| Fan material | A5052 (aluminum), SPCC (iron) |
| Disk material | SUS304 (stainless steel) |
| Drain pipe(mm) | Outside diameter ø25.4 pipe (2 places) |
| Noise(dB[A]) | 71 |
| Certification | CE / ETL |
