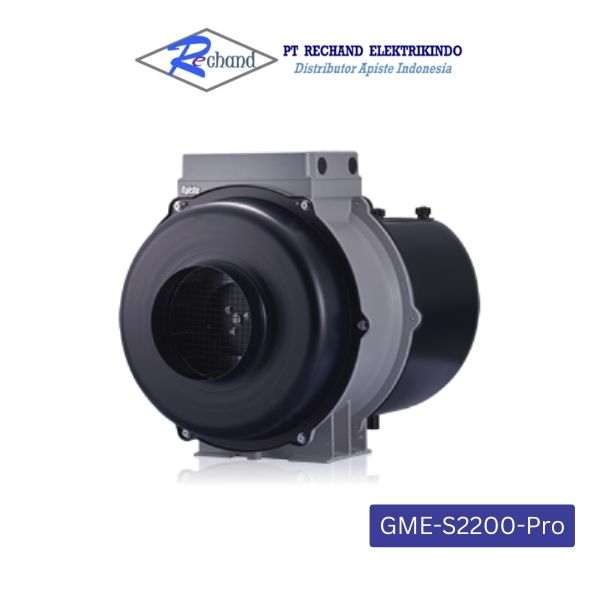

GME-S2200-Pro Mist Collector
GME-S2200-Pro adalah mist collector dari seri GME-S-Pro Apiste yang dirancang untuk performa tinggi dalam lingkungan industri yang berat. Memiliki kapasitas maksimum aliran udara 27,1 m³/menit, efisiensi koleksi 99,7%, dengan motor permanent magnet 2,2 kW. Cocok untuk menangani kabut oli larut maupun tidak larut, termasuk mist dari proses pemotongan, penggilingan, atau penggunaan oli industrial. Dimensi kompak (H544×W468×D674 mm) dan berat sekitar 37 kg memudahkan instalasi di workstation.
Beroperasi stabil dalam rentang suhu 0-50°C dan kelembapan hingga 90% RH tanpa kondensasi.
Spesifikasi GME-S2200-Pro Mist Collector
| Maximum air volume(m³/min) | 27.1 |
|---|---|
| Maximum static pressure (kPa) | 1.5 |
| Collecting efficiency(%) *1 | 99.7 |
| Operating temperature and humidity | 0 to 50℃, 90% RH or less (indoor specification, no condensation) |
| Absorption gas temperature(℃) | 0 to 50 |
| Collection target *2 | Water-insoluble oil mist (ignition point: 150℃ or higher), water-soluble oil mist |
| Max. inlet density(mg/m3) | 50 |
| External dimensions(mm) *3 | H544×W468×D674 |
| Suction port(mm) | Side suction ø198 |
| Weight(kg) | Approx. 37 |
| Coating color | Munsell N7, Munsell 5PB2/2 |
| Rated voltage(V) *4 | Three-phase 200 to 230 V AC (50/60 Hz) |
| Current consumption(A) *5 | 8.8 |
| Power consumption(W) *5 | 2210 |
| Recommended breaker capacity(A) | 15 |
| Installed motor | Permanent magnet synchronous motor (for inverter drive only) |
| Installed motor output | 2.2 kW 4P (fully enclosed fan-less type) |
| Fan material | A5052 (aluminum), SPCC (iron) |
| Disk material | SUS304 (stainless steel) |
| Drain pipe(mm) | Outside diameter ø25.4 pipe (2 places) |
| Noise(dB[A]) | 78 |
