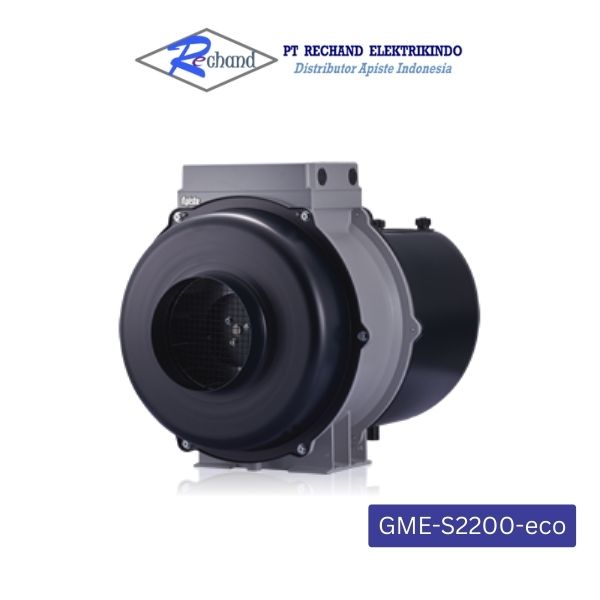

GME-S2200-eco Mist Collector
GME-S2200-eco adalah mist collector seri eco dari Apiste yang menawarkan kombinasi kapabilitas tinggi dan efisiensi energi. Dengan aliran maksimum 34,2 m³/menit, efisiensi koleksi 99,0%, motor permanent magnet 2,2 kW, dan operasi stabil di suhu 0-50 °C serta kelembapan hingga 90% RH. Dirancang untuk menangani kabut oli (larut & tidak larut) di area industri besar, termasuk workstation las, grinding, dan aplikasi pemrosesan material berat.
Berbobot sekitar 35 kg dengan port pengisapan sisi ø198 mm, mudah dipasang dan dirawat.
Spesifikasi GME-S2200-eco Mist Collector
| Maximum air volume(m³/min) | 34.2 |
|---|---|
| Maximum static pressure (kPa) | 1.9 |
| Collecting efficiency(%) *1 | 99.0 |
| Operating temperature and humidity | 0 to 50℃, 90% RH or less (indoor specification, no condensation) |
| Absorption gas temperature(℃) | 0 to 50 |
| Collection target *2 | Water-insoluble oil mist (ignition point: 150℃ or higher), water-soluble oil mist |
| Max. inlet density(mg/m3) | 50 |
| External dimensions(mm) *3 | H544×W468×D674 |
| Suction port(mm) | Side suction ø198 |
| Weight(kg) | Approx. 35 |
| Coating color | Munsell N7, Munsell 5PB2/2 |
| Rated voltage(V) *4 | Three-phase 200 to 230 V AC (50/60 Hz) |
| Current consumption(A) *5 | 9.0 |
| Power consumption(W) *5 | 2300 |
| Recommended breaker capacity(A) | 15 |
| Installed motor | Permanent magnet synchronous motor (for inverter drive only) |
| Installed motor output | 2.2 kW 4P (fully enclosed fan-less type) |
| Fan material | A5052 (aluminum), SPCC (iron) |
| Drain pipe(mm) | Outside diameter ø25.4 pipe (2 places) |
| Noise(dB[A]) | 79 |
