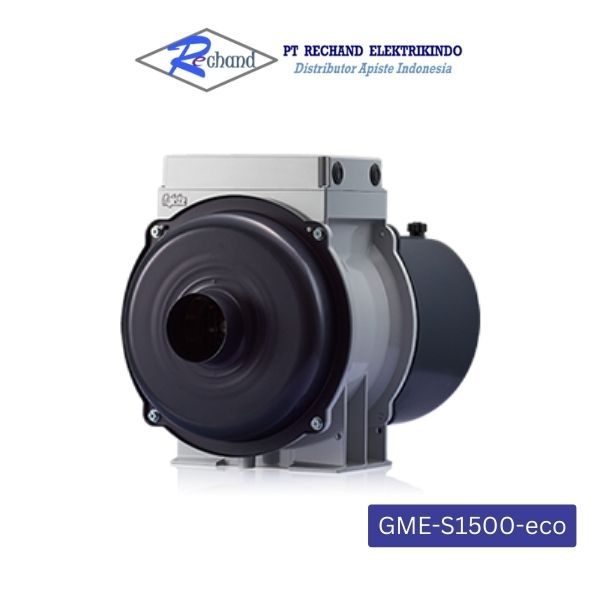

GME-S1500-eco Mist Collector
GME-S1500-eco adalah mist collector dari seri eco Apiste yang menawarkan kombinasi performa tinggi dan efisiensi energi. Dirancang untuk menangani kabut oli larut ataupun tidak larut dengan aliran udara maksimum 23,0 m³/menit, efisiensi koleksi 99,0%, daya motor 1,5 kW, serta operasi stabil di suhu 0-50 °C dan kelembapan ≤ 90% RH.
Ukuran kompak (H544×W468×D574 mm), berat sekitar 31 kg — ideal untuk workstation industri yang memerlukan udara bersih dan konsumsi listrik rendah.
Spesifikasi GME-S1500-eco Mist Collector
| Maximum air volume(m³/min) | 23.0 |
|---|---|
| Maximum static pressure (kPa) | 2.1 |
| Collecting efficiency(%) *1 | 99.0 |
| Operating temperature and humidity | 0 to 50℃, 90% RH or less (indoor specification, no condensation) |
| Absorption gas temperature(℃) | 0 to 50 |
| Collection target *2 | Water-insoluble oil mist (ignition point: 150℃ or higher), water-soluble oil mist |
| Max. inlet density(mg/m3) | 50 |
| External dimensions(mm) *3 | H544×W468×D574 |
| Suction port(mm) | Side suction ø148 |
| Weight(kg) | Approx. 31 |
| Coating color | Munsell N7, Munsell 5PB2/2 |
| Rated voltage(V) *4 | Three-phase 200 to 230 V AC (50/60 Hz) |
| Current consumption(A) *5 | 7.6 |
| Power consumption(W) *5 | 1730 |
| Recommended breaker capacity(A) | 15 |
| Installed motor | Permanent magnet synchronous motor (for inverter drive only) |
| Installed motor output | 1.5 kW 4P (fully enclosed fan-less type) |
| Fan material | A5052 (aluminum), SPCC (iron) |
| Drain pipe(mm) | Outside diameter ø25.4 pipe (2 places) |
| Noise(dB[A]) | 79 |
