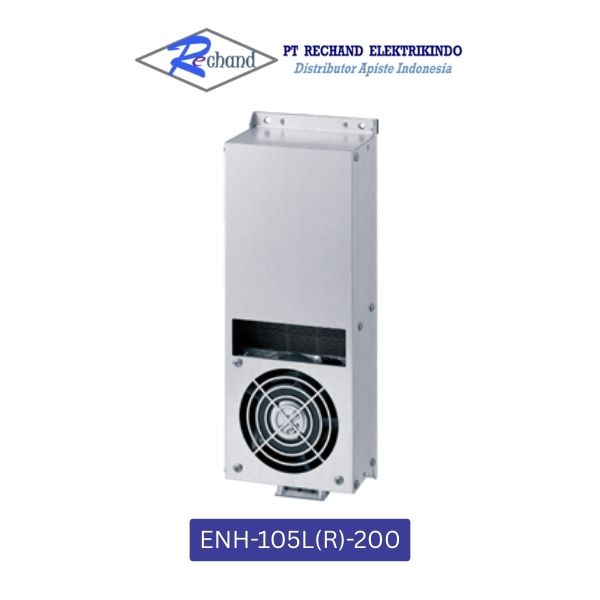

ENH-105L(R)-200 – Heat-Pipe Mini Heat Exchanger Internal Panel
ENH-105L(R)-200 adalah heat exchanger ultra-kompak tipe inside side-mount untuk panel kontrol. Dilengkapi menggunakan sistem heat-pipe yang memanfaatkan pure water tanpa freon. Kapasitas rated ~7/8 W/K, dimensi kecil (H289 × W105 × D70 mm), dan berat hanya sekitar 1,5 kg.
Cocok untuk digunakan di panel dengan suhu sekitar 0-70 °C dan kelembapan 20-85 % RH (tanpa kondensasi). Ideal untuk menjaga stabilitas suhu internal panel tanpa penggunaan media pendingin aktif.
Spesifikasi ENH-105L(R)-200
| Mount type | Inside side-mount |
|---|---|
| cooling method | Ultra-tube type heat conduction (Heat pipe) Completely CFC-free (Using pure water) |
| Rated capacity (W/K) | 7／8 |
| Use Area Temperature (°C) | 0～70 or less |
| Use Area Humidity (%RH) | 20～85 (No condensation) |
| External dimensions (mm) | H289×W105×D70 |
| Weight (kg) | 1.5 |
| Coating Color | Molten zinc plated / Unpainted |
| Rated Voltage (V) | Single-phase AC 200 |
| Consumption Current (A) | 0.12/0.10 (MAX) |
| Restraint current (A) | 0.14/0.12 (MAX) |
| Consumption wattage (W) | 40/36 (MAX) |
