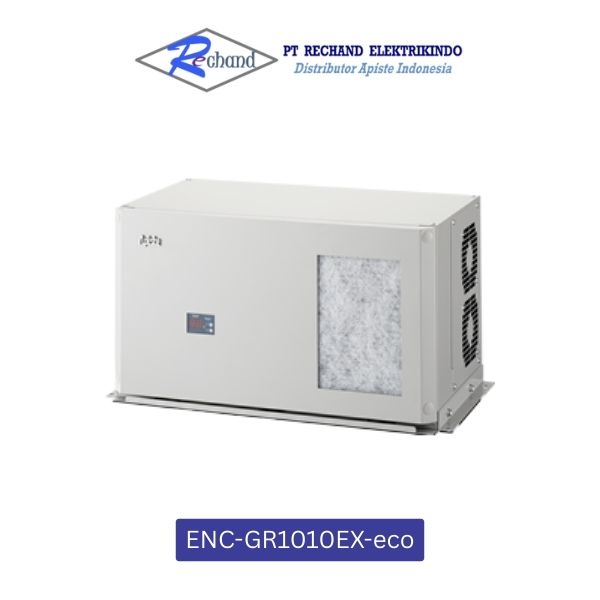

ENC-GR1010EX-eco – Top-Mounting Panel Cooler Non-Freon 960 W

ENC-GR1010EX-eco adalah unit pendingin panel kontrol tipe top-mounting dengan kapasitas pendinginan 960 W. Menggunakan refrigeran ramah lingkungan R1234yf, beroperasi pada tegangan 100-120 V AC. Dirancang untuk menjaga suhu internal panel stabil di rentang 25-45 °C, cocok untuk lingkungan ambien hingga 55 °C dengan kelembapan 10-85 % RH tanpa kondensasi.

Ukuran kompak H348×W600×D353 mm, berat 32 kg, dengan rating proteksi IP54 (sirkulasi internal) dan konsumsi daya ~465 W saat rating.

Deskripsi

Spesifikasi ENC-GR1010EX-eco

Mounting type	Top-mounting
Cooling capacity(W)	960
Setting temperature range(℃)	25 to 45
Ambient Temperature(℃)	20 to 55
Ambient Humidity(%RH)	10～85 (No condensation)
Dimensions(mm)	H348×W600×D353
Weight(kg)	32
Coating Color	Munsell 5Y 7/1 Equivalent color of light beige
Rated voltage(V)	Single-phase 100 to 120V AC
Current consumption : Rating(A)	5.3/5.3
Current consumption : Max(A)	5.9/5.9
Power consumption : Rating(W)	465
Power consumption : Max(W)	513
Recommended breaker capacity (A)	10
Vibration resistance	Equivalent to JIS Z 0200 Level1
Dustproof and splashproof protection grade	Equivalent to IP54 (internal circulation route)
Refrigerant / Amount(g)	R1234yf 250g
Noise (dB (A))	Approx. 70
