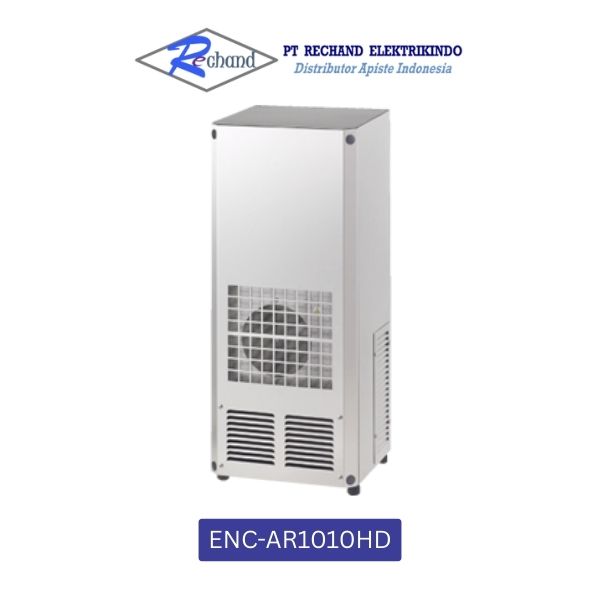

ENC-AR1010HD – Outdoor Panel Cooler Freon-Gas 1,0 kW Side-Mounting

ENC-AR1010HD adalah unit pendingin panel kontrol outdoor bersertifikasi freon-gas, dengan kapasitas pendinginan sekitar 900-1000 W. Dirancang pemasangan side-mounting, dengan dimensi H730×W300×D280 mm dan berat 26 kg. Mampu menjaga suhu panel dalam rentang 25-45 °C, beroperasi di lingkungan −5 hingga 50 °C dengan kelembapan 10-85 % RH (tanpa kondensasi).

Dilengkapi finishing stainless (NSSC 180-HL), proteksi IP54 pada rute sirkulasi internal, serta dilengkapi output alarm eksternal dan display suhu/internal error.

Deskripsi

Spesifikasi ENC-AR1010HD

Mounting type	Side-mounting
Cooling capacity(W)	900/1000
Setting temperature range(℃)	25 to 45
Ambient Temperature(℃)	-5 to 50
Ambient Humidity(%RH)	10～85 (No condensation)
Dimensions(mm)	H730×W300×D280
Weight(kg)	26
Surface finish	NSSC 180-HL No.4 Finish
Rated voltage(V)	Single-phase 100V AC
Current consumption : Rating(A)	5.6/4.6
Current consumption : Max(A)	6.5/6.3
Starting Current(A)	15.6/14.7
Power consumption : Rating(W)	440/450
Power consumption : Max(W)	595/615
Vibration resistance	Equivalent to JIS Z 0200 Level1
Dustproof and splashproof protection grade	Equivalent to IP54 (internal circulation route)
Certification
Refrigerant / Amount(g)	R134a 255g
Noise (dB (A))	Approx. 64/66
